ILMCV Trucks

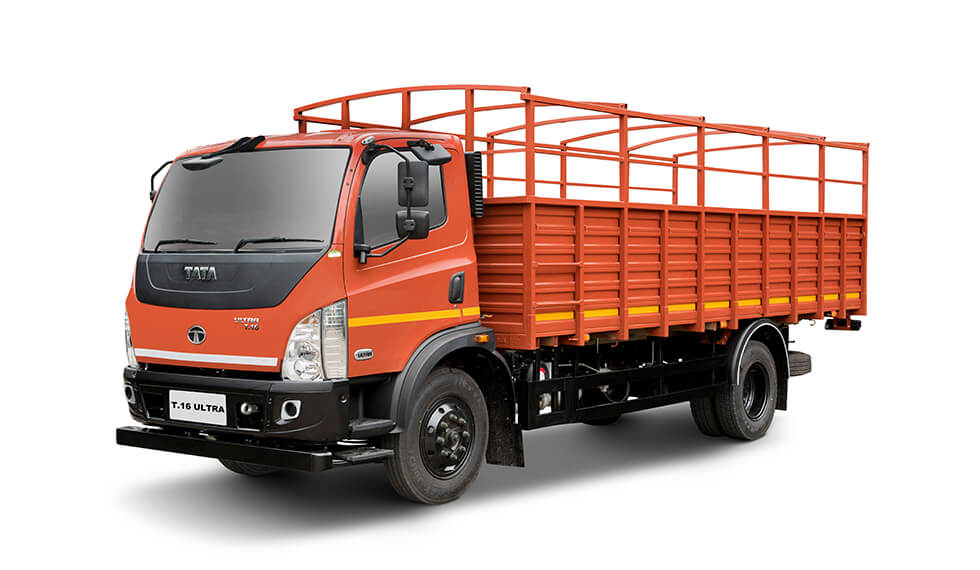

TATA ULTRA T.16
Crafted to address the changing requirements of Indian logistics and distribution, the Tata Ultra ensures outstanding efficiency and dependability. Providing both cost-saving fuel efficiency and reassurance, it's a truck engineered to excel in every task, regardless of the load.
16140 Kg
GVW177.7 kW (160 Ps) @ 2600 r/min (Heavy Mode) | 92 kW (125 Ps) @ 2600 r/min (Light Mode)
Power3.3L NG BS6 Engine
EngineNA
Deck LengthSIMILAR VEHICLES
TATA ULTRA T.16
The Tata Ultra boasts a 3.3L NG BS6 engine combined with a G550 gearbox, enhancing its adaptability across diverse applications. With an increased payload capacity of 1100 kg, it solidifies its position as the top choice in its segment
Engine
3.3L NG BS6 Engine
Torque
475 Nm @ 1600 - 2000 r/min (Heavy Mode) | 92 kW (125Ps) @ 2600 r/min (Light Mode)
Fuel Tank
160 L
Tyres
9R20 16PR Low CRR Radial (FR - 2, RR - 4, Spare - 1)
Warranty
3 Years / 3 Lakh Kms
Applications
E-commerce, Textile, Industrial Goods, FMCG, Pipes, Food Grains, White Goods, Fruits & Vegetables
| Brakes Type | Dual Circuit Full Air S" Cam Brakes With Auto Slack Adjuster |
| Service Interval | 1 Year or 60 000 km |
| DEF Tank Size | 18 L |
| Seating Capacity | D + 2 |
| Warranty | 3 Years or 300 000 km |
| Long member Size (LxBxH) | 220 mm x 60 mm x 7 mm |
| RAW | 10 550 kg |
| FAW | 5 590 kg |
| GVW | 16 140 kg |
| Load Body Variants | Cab, CLB, High Deck, Container, Reefers |
| Fuel Tank Capacity (lit) | 160 L |
| Battery | 12 V - 100 Ah |
| Rear Axle | TATA RA108R Single reduction hypoid gears, fully floating |
| Gradeability | 26% |
| Ground Clearance | 235 mm |
| Models | T.16 Ultra Day |
| Steering Type | Tilt & Telescope Power Steering (Dia - 420) |
| Cabin Type | Ultra Day Cab |
| Tyres | 9 R 20 - 16PR Low CRR Radial (FR - 2, RR - 4, Spare - 1) |
| Suspension - Rear Type | Semi Elliptical Leaf Spring with Aux Springs |
| Suspension - Front Type | Parabolic Leaf Spring with Hydraulic double acting Telescopi |
| Gearbox Ratio | 1st - 6.9, 2nd - 4.02, 3rd - 2.39, 4th - 1.46, 5th - 1, 6th |
| Gearbox | G550 (6F, 1R), Cable Shift Mechanism |
| Clutch | Single Plate Dry Friction Type, 330 mm |
| Torque | 475 Nm @ 1 600 - 2 000 r/min (Heavy Mode) | 400 Nm @ 1 100 |
| Power | 117.7 kW (160 PS) @ 2 600 r/min (Heavy Mode) | 92 kW (125 PS |
| Engine Displacement | 3 300 cc |
| Engine Type | 4 Cylinder in line water cooled direct Injection diesel |
| Engine | 3.3L NG BSG Engine |
