HEAVY HAULAGE
TATA SIGNA 3525.T

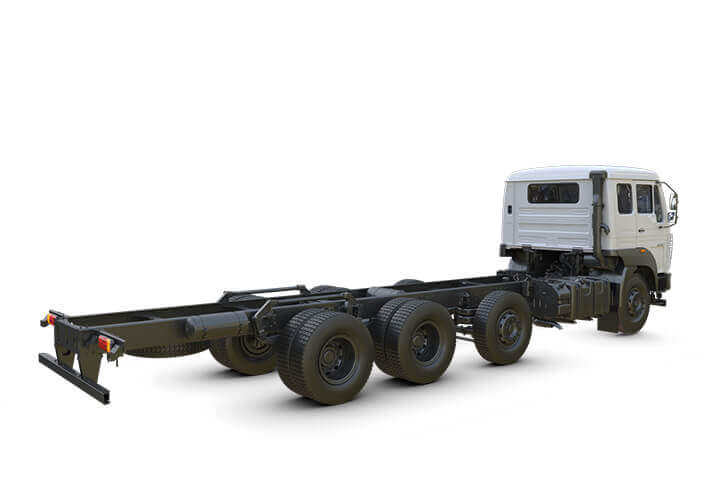

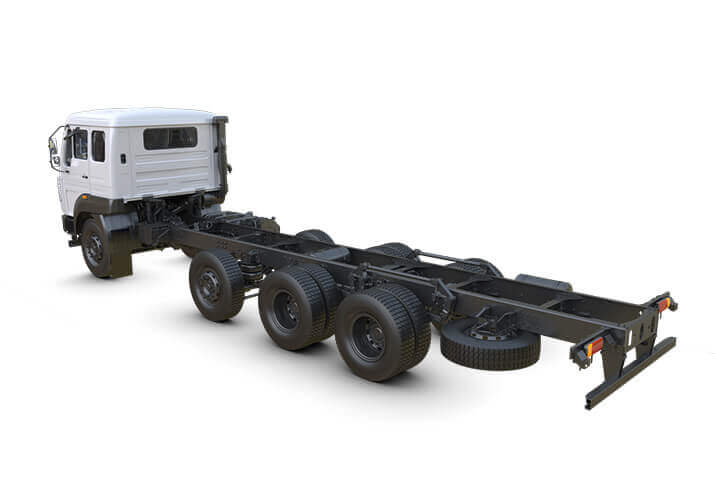

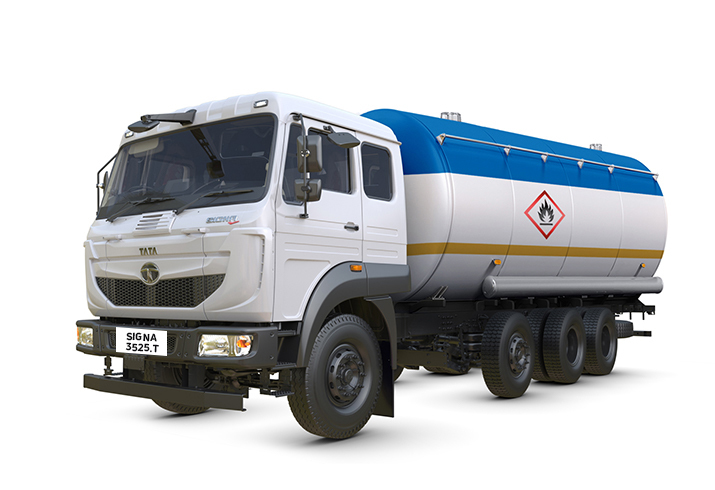

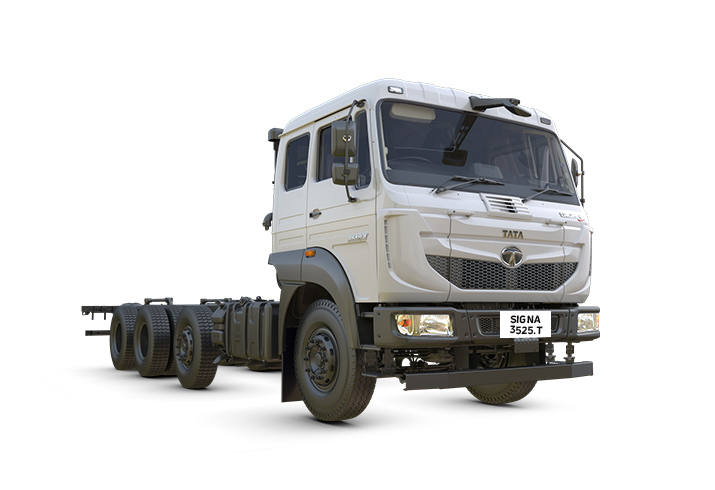

The Tata Signa 3525.T is a versatile heavy commercial vehicle designed for various applications in the logistics and transportation industry.
35000kg
GVW186 kW @ 2300 r/min
PowerCummins 6.7 l
EngineNA
Deck LengthSIMILAR VEHICLES
About Signa 3525.T
Engine
Cummins 6.7L
Torque
950 Nm@1000-1800 RPM
Fuel Tank
Diesel
Tyres
295/90R20 Radial Tube Tyres
Warranty
6Y6L on Driveline
Applications
FMCG, Tanker, Parcel, FMCD, Ore & Minerals, Cement Bags
| Front Suspension | Parabolic leaf spring |
| No of Tyres | 12 Tyres |
| Configuration | 8 x 2 |
| Ground Clearance | 248 mm |
| Deck Length Options | 6 706 mm (22 ft) 7 315 mm (24 ft) 8 534 mm (28 ft) 9 754 mm |
| Wheelbase Options | 5 300 mm, 5 600 mm, 6 000 mm & 6 800 mm |
| Fuel Tank Capacity | 365 l HDPE (Plastic tank) |
| Ventilation | AC Ex |
| Tyres | 295/90R20 Radial Tube Tyres |
| Cab / Cowl | Prima Cab / Signa Cab / Cowl options available |
| Rear Suspension | Semi elliptical multi leaf spring |
| Model | TATA LPT 3525 / SIGNA 3525.T |
| Rear Axle | RA 110 LD at RFWD and RA-909 at RRWD |
| Front Axle | Extra heavy duty forged I beam Reverse Elliot type |
| Transmission | G950 6S |
| Clutch | 395 dia. organic clutch |
| Maximum Torque | 950 Nm @ 1 000 - 1 800 r/min |
| Maximum Power | 186 kW (250 HP) @ 2 300 r/min |
| Engine Capacity | 6 702 CC |
| Engine | Cummins Isbe 6.7 I OBD-II |
| Gross Vehicle Weight | 35 000 kg |
