TIPPERS

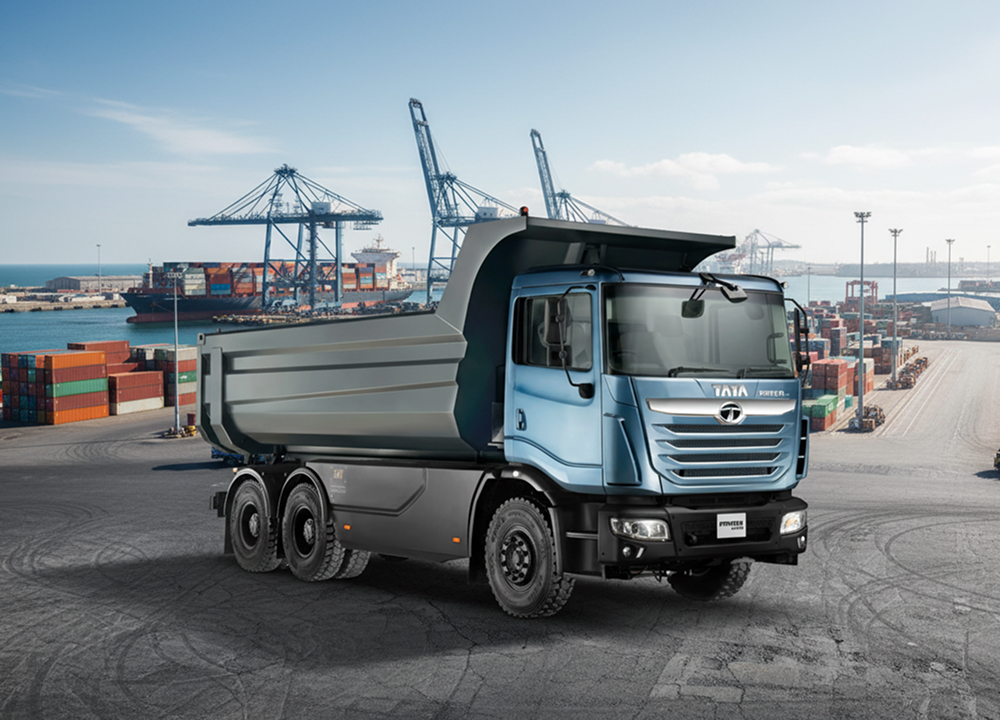

Tata Prima E. 28K
A powerful electric tipper engineered for zero-emission mining operations and demanding construction environments.
28,000 kg
GVW145 kW
PowerNA
EngineNA
Deck LengthSIMILAR VEHICLES

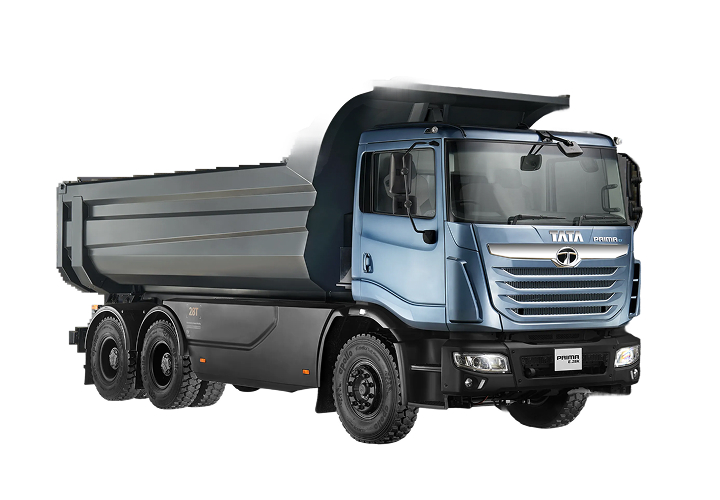

Tata Prima E. 28K
The PRIMA E.28 6X4 Tipper brings electric performance to heavy-duty mining and construction applications. With high-output PMSM motors, long-range battery options, and rugged hub-reduction axles, it delivers exceptional pulling power with zero tailpipe emissions. Advanced safety systems, fast-charging capability, and extended component warranties ensure reliable uptime in the toughest site conditions.
Engine
145 kW
Torque
2950 Nm
Fuel Tank
NA
Tyres
11 × 20–18PR ML
Applications
Shallow Mining, Mineral Movement, Port Application
| Traction Motor | HV 3000/6 Phase |
| Torque | 2950 Nm |
| Battery Pack | Lithium Ion – 453 kWh |
| Transmission type | Central Drive, 6×4, RWD |
| Brakes | S Cam air brake (Noise free Liners) with EBS, Hill Start ass |
| Tyres | 11 × 20–18PR ML |
| Suspension – Front | Parabolic leaf spring |
| Suspension – Rear | 37T Bogie Suspension |
| GVW (kg) | 28000 |
| Range | Up to 220 km |
| Gradeability | 32% |
-
-
