TIPPERS

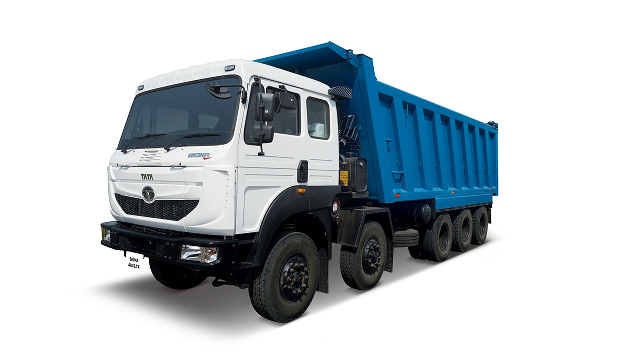

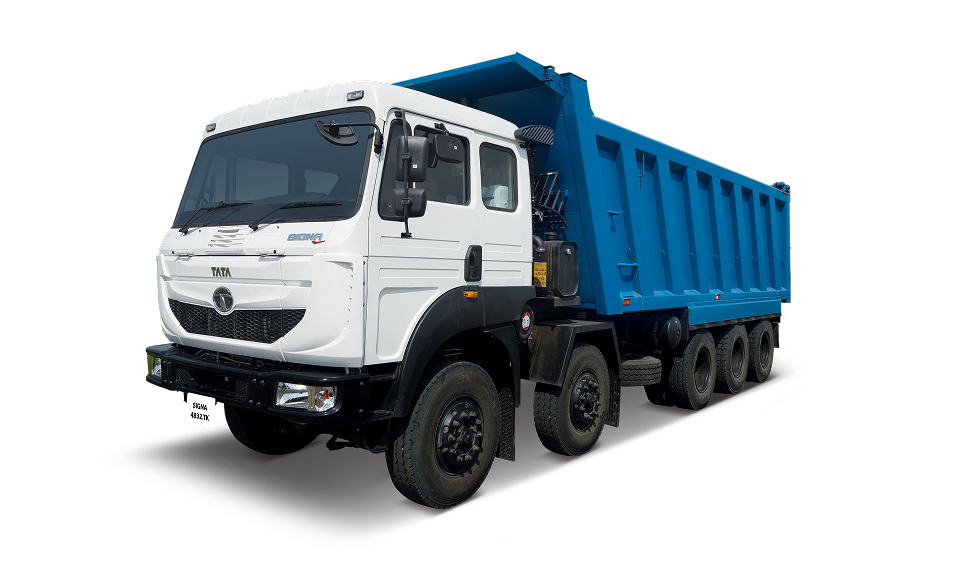

TATA SIGNA 4832.TK 10X2 & 10X4
A high-capacity multi-axle tipper built for large-scale mining, infrastructure, and material transport operations.
47500 Kg
GVW239 Kw (320HP) @ 2300 Rpm
PowerCummins ISBe 6.7
EngineBox - 18 | 24 | 29
Deck LengthSIMILAR VEHICLES
TATA SIGNA 4832.TK 10X2 & 10X4
The SIGNA 4832.TK 10X2 & 10X4 is designed for heavy-duty hauling of sand, coal, crushed stone, and fly ash across challenging terrain. Powered by the Cummins ISBe engine and reinforced with rugged aggregates, it delivers outstanding durability, traction, and uptime. Advanced telematics, safety technologies, and an extended driveline warranty ensure dependable performance for high-intensity construction and mining applications.
Engine
Cummins ISBe 6.7
Torque
1100 Nm
Fuel Tank
300L HDPE
Tyres
11R20 & 295/90R20
Warranty
6Years/6L Km on Driveline
Applications
Sand, Crushed Stone, Coal, Fly ash
| Tyre | 11R20 & 295/90R20 |
| Key Features | GSA, FE Switch, Mode shift advisor, HSA, ATC, Engine Brake |
| Warranty | 6Years/6L Km on Driveline |
| Emission Norms | Only SCR |
| Ventilation | AC |
| Cabin | Signa Cabin |
| DEF Tank | 60L |
| Electronic Anti Fuel Theft | Yes |
| Fuel Tank | 300L HDPE |
| Chassis Frame | Ladder type heavy duty frame |
| Auxiliary Brake | Engine Brake |
| Service Brake | Full Air S-Cam with Automatic Adjuster |
| Max Power | 239 Kw (320HP) @ 2300 Rpm |
| Rear Suspension | Bell Crank (Optional - Bogie) |
| Front Suspension | Parabolic Leaf Spring |
| Rear Axle | RA 109 SRT |
| Gearbox | Tata G1150 9 Speed |
| Clutch Type | 430 mm Single plate dry friction type |
| Wheel Base | 68 |
| No. of Wheels | 16 |
| GCW | 47500 Kg |
| Engine Capacity / Cylinder | 6702 CC / 6 Cylinder |
| Engine Type | Cummins ISBe 6.7 |
| Max Torque | 1100 Nm @ 1100-1700 Rpm |
