TATA LPT/SIGNA 3521.T
A versatile, high-capacity hauler designed for multi-industry transport with exceptional uptime and efficiency.
35000 Kg
GVW150 Kw (204HP) @ 2200 Rpm
PowerTata 5L Turbotronn
EngineNA
Deck LengthSIMILAR VEHICLES

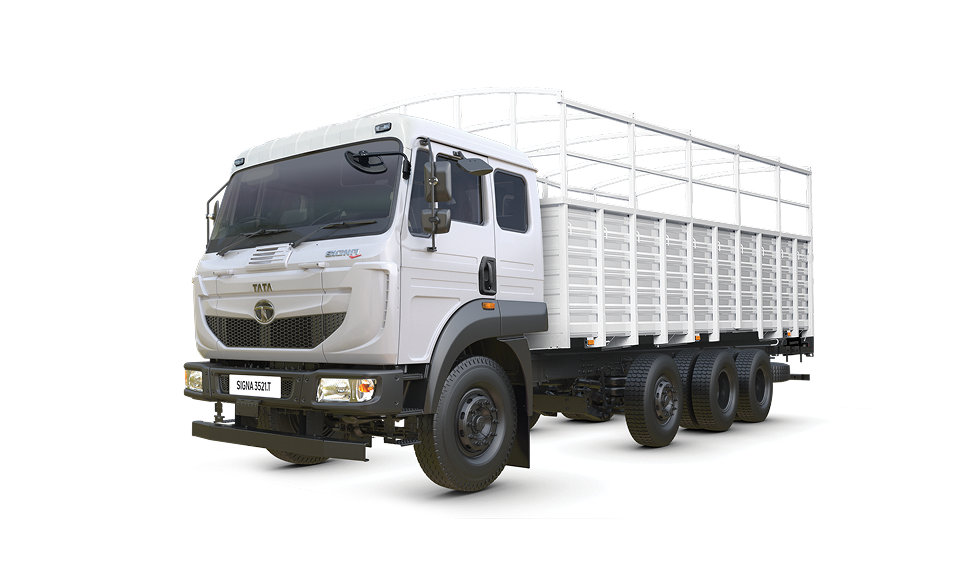

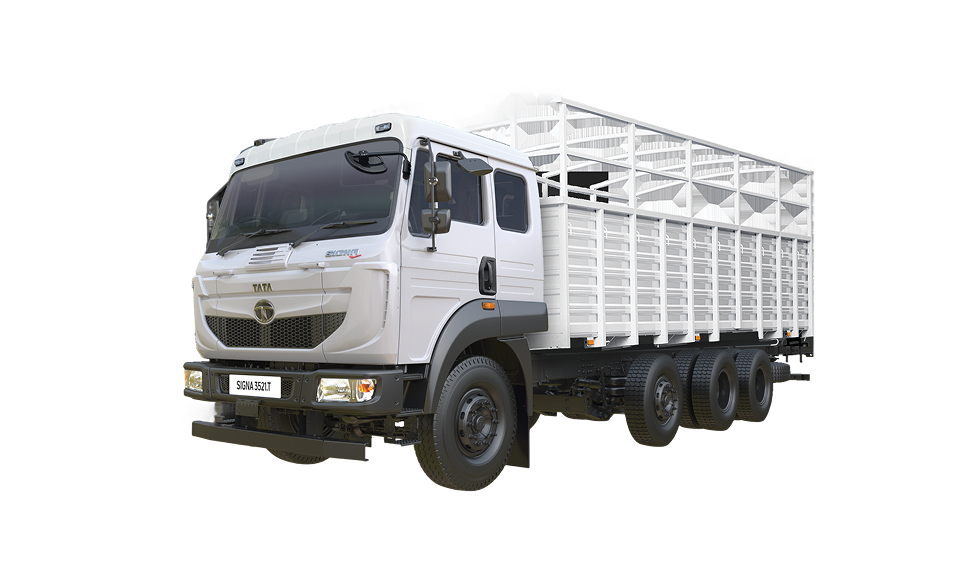

TATA LPT/SIGNA 3521.T
The LPT/SIGNA 3521.T is engineered for demanding multi-sector operations, from cold chain and auto logistics to tanker and FMCG transport. Powered by the Tata 5L Turbotronn engine and equipped with advanced fuel-efficiency technologies, cruise control, and 4G telematics, it delivers dependable performance, lower operating costs, and long-term fleet value backed by an extended driveline warranty.
Engine
Tata 5L Turbotronn
Torque
850 Nm @ 1000-1600 Rpm
Fuel Tank
Diesel
Tyres
295/90R20
Warranty
6Y6L on Driveline
Applications
Industrial Goods, E-Commerce, LPG Bullet, Auto Logistics, Cold Chain, FMCG, Textiles, Parcel & Courier, Tanker, Agriculture Goods
| Front Tyre | 295/90 R20 |
| Rear Axle | Tata RA 110 |
| Service Brake | Full Air S-Cam with Automatic Adjuster |
| Auxiliary Brake | Engine Brake |
| Chassis Frame | Ladder type heavy duty frame |
| Electronic Anti Fuel Theft | Yes |
| Cowl/Cabin | LPT Cowl / Signa Cabin |
| Trim Levels | EX, LX |
| Warranty | Drive line - 6Year/6Lakh Km Vehicle - 3Year/3Lakh Km |
| Telematics | Yes |
| Ventilation | AC |
| Front Suspension | Parabolic Leaf Spring |
| Rear Suspension | Bell Crank with Semi elliptical Leaf Spring |
| Rear Tyre | 295/90 R20 |
| Max Power | 150 Kw (204HP) @ 2200 Rpm |
| No. of Wheels | 12 Wheels |
| Seating Capacity & Layout | D + 2 |
| Load Body Type | HSD |
| Load Body Length | 24Ft | 28Ft | 32Ft |
| Gearbox | Tata G950 6 Speed |
| Clutch Type | 380 mm Single plate dry friction type |
| Fuel Type | Diesel |
| Fuel Tank Capacity (Litres) | 365L HDPE |
| Gradeability (%) | NA |
| Engine Cylinders | 4 Cylinders |
| Engine Type | Tata 5L Turbotronn |
| Emission Norms | EGR+SCR |
| Max Torque | 850 Nm @ 1000-1600 Rpm |
