Alternate Fuel

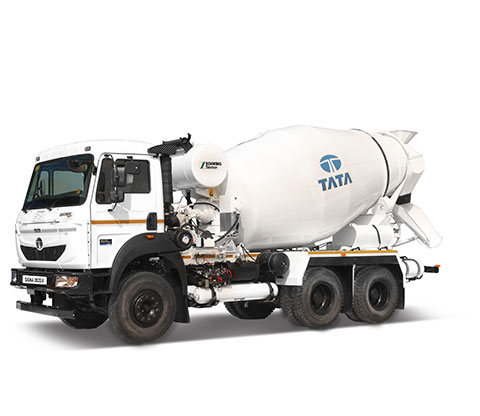

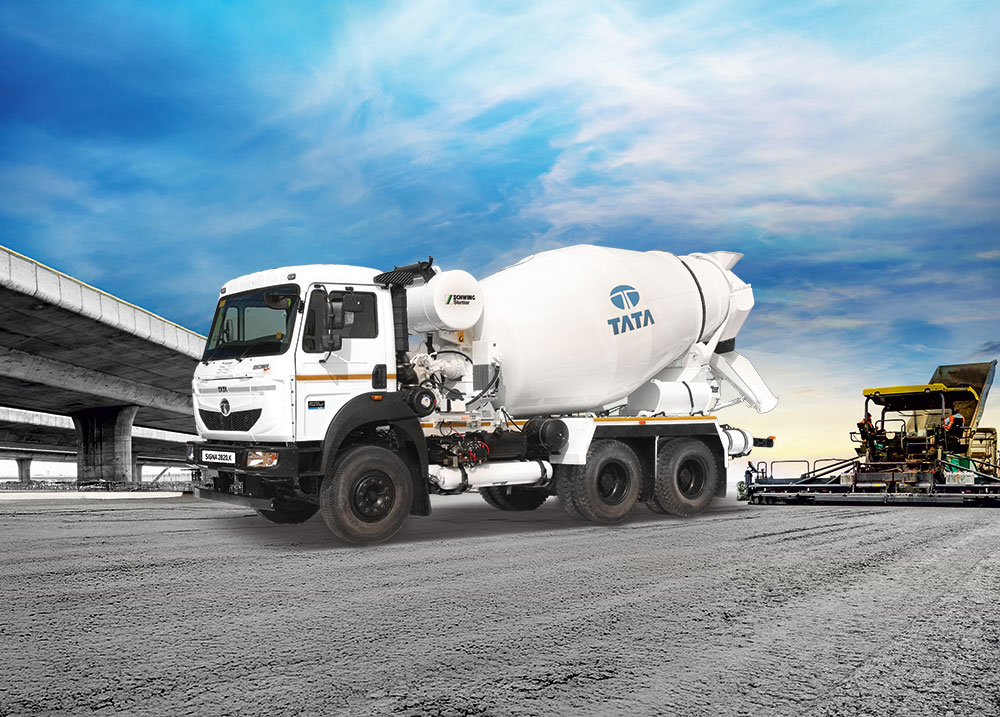

TATA SIGNA 2820.K CNG
A cleaner CNG-powered concrete transporter designed for efficient, reliable, and site-ready operations.
28000 Kg
GVW700 Nm @ 1300-1600 Rpm
PowerTata 5.7L SGI BSVI RDE
EngineSIMILAR VEHICLES

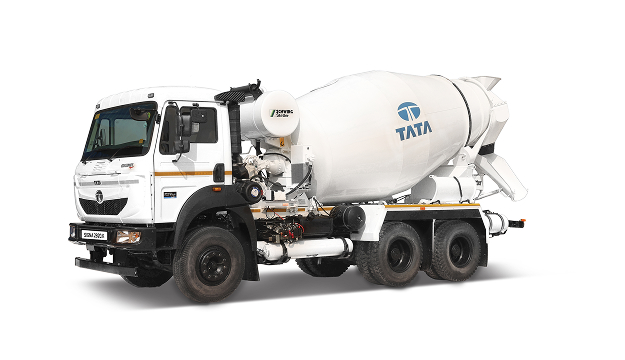

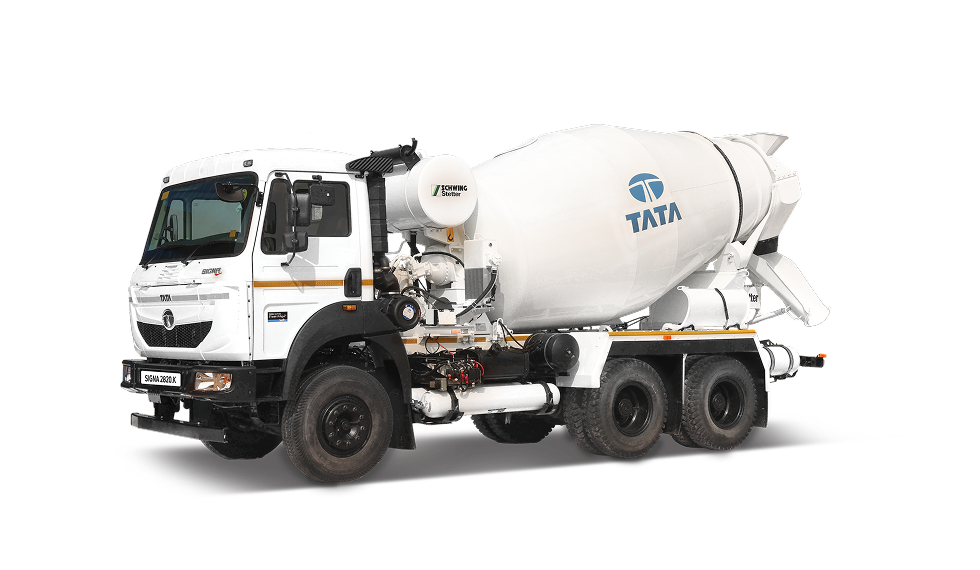

TATA SIGNA 2820.K CNGÂ
The SIGNA 2820.K CNG is purpose-built for ready-mix concrete applications, combining the Tata 5.7L SGI engine with durable aggregates and a large CNG fuel capacity for extended operations. Fuel-efficiency technologies, telematics, and drive-mode advisors help improve uptime while lowering operating costs. Backed by a standard warranty, it delivers dependable performance for everyday site demands.
Engine
Tata 5.7L SGI
Torque
700 Nm
Fuel Tank
583L
Tyre
295/95D20
Warranty
3Year/3K Hour
Applications
RMC
| Front Suspension | Parabolic Leaf Spring |
| Key Features | GSA, FE Switch, Mode Shift Advisor, 4G Temelatics |
| Trim Levels | EX |
| Warranty | 3Year/3K Hours |
| Ventilation | AC |
| Cabin | Signa Cabin |
| Fuel Tank | 583L (RHS= 198L+80L+80L & LHS= 80L+80L+65L) |
| Chassis Frame | Ladder type heavy duty frame with riveted/bolted cross membe |
| Auxiliary Brake | Exhaust Brake |
| Service Brake | Full Air S-Cam with Automatic Adjuster |
| Tyre | 295/95D20 |
| Rear Suspension | Bell Crank with Semi elliptical Leaf Spring |
| Max Power | 149 Kw (200HP) @ 2250 Rpm |
| Rear Axle | RA 109 SRT |
| Gearbox | Tata G750 6 Speed |
| Clutch Type | 380 mm Single plate dry friction type |
| Load Span | 7 CuM |
| Wheel Base | 42 |
| No. of Wheels | 10 |
| GVW | 28000 Kg |
| Engine Capacity / Cylinder | 5675 CC / 6 Cylinder |
| Engine | Tata 5.7L SGI BSVI RDE |
| Max Torque | 700 Nm @ 1300-1600 Rpm |
-
