TIPPERS
TATA Prima E.28K 6X4 TIPPER
A powerful electric tipper engineered for zero-emission mining operations and demanding construction environments.
28000 Kg
GVW470 kW
PowerPMSM (235 Kw & 470 Kw)
EngineNA
Deck LengthSIMILAR VEHICLES

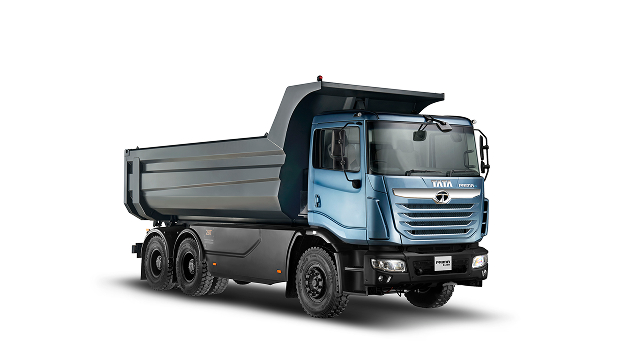

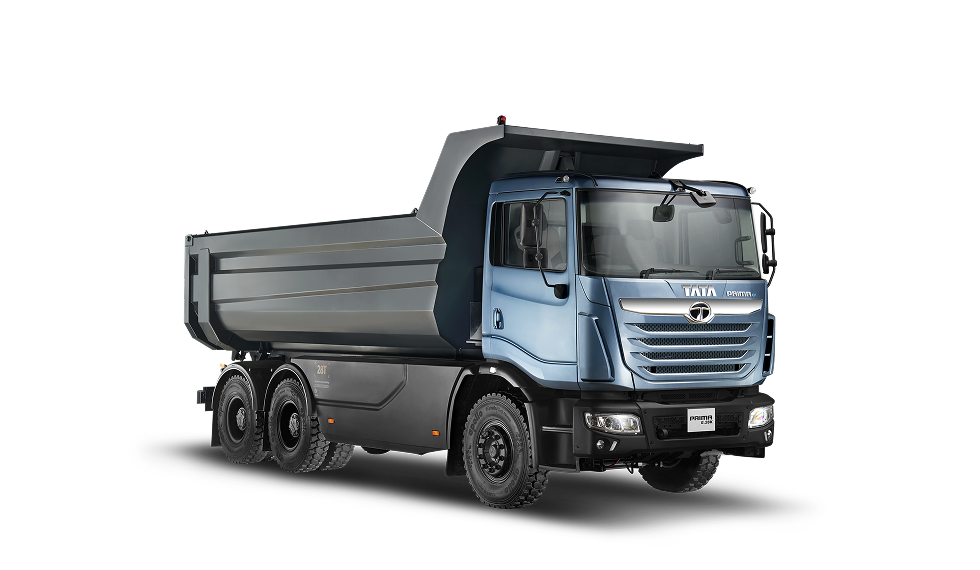

TATA PRIMA E.28K 6X4 TIPPER
The PRIMA E.28 6X4 Tipper brings electric performance to heavy-duty mining and construction applications. With high-output PMSM motors, long-range battery options, and rugged hub-reduction axles, it delivers exceptional pulling power with zero tailpipe emissions. Advanced safety systems, fast-charging capability, and extended component warranties ensure reliable uptime in the toughest site conditions.Â
Motor
PMSM (235 Kw & 470 Kw)
Torque
2950 Nm & 2455 Nm
Battery Pack
300 Kwh & 450 Kwh
Tyre
11R20 & 11X20
Warranty
6Year/6K Hours
Applications
Mining, Construction Aggregats
| Max Power | 235 Kw (LD) | 470 Kw (HD) |
| Max Torque | 2950 Nm (LD) | 2455 Nm (HD) |
| Motor Type | PMSM (Permanent Magnet Synchronous Motor) |
| GVW | 28000 Kg |
| No. of Wheels | 10 |
| Wheel Base | 46 |
| Continuous Torque | 1100 Nm (LD) | 1800 Nm (HD) |
| Transmission | 2 Speed Auto Electro-Pneumatic Shift |
| Rear Axle | Hub Reduction with Inter Axle & Differential Lock with EBS |
| Front Suspension | Parabolic leaf Spring |
| Rear Suspension | Bogie |
| Tyre | 11R20 & 11X20MT |
| Service Brake | Full Air S-Cam with Automatic Adjuster |
| Chassis Frame | Ladder type heavy duty frame |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Battery Pack | Option 1 - 300 Kwh, Option 2 - 450 Kwh |
| Charger Port | Dual CCS2 |
| Cabin | Prima Cabin |
| Ventilation | AC |
| Warranty | 6Year/6K Hours |
| Trim Levels | LX, VX |
