TIPPERS
TATA SIGNA 4232.TK 10X2 & 10X4
A heavy-duty multi-axle tipper designed for high-volume material movement and tough site conditions.
42000 Kg
GVW239 Kw (320HP) @ 2300 Rpm
PowerCummins ISBe 6.7
EngineBox - 24
Deck LengthSIMILAR VEHICLES

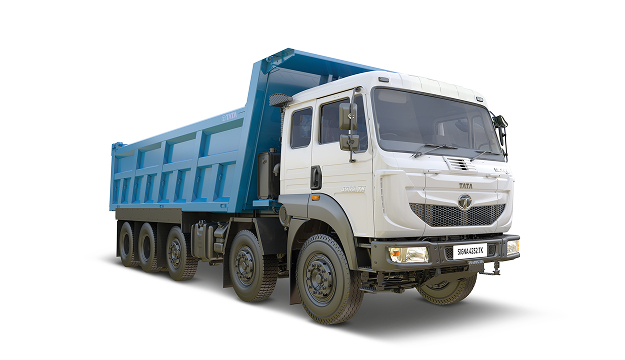

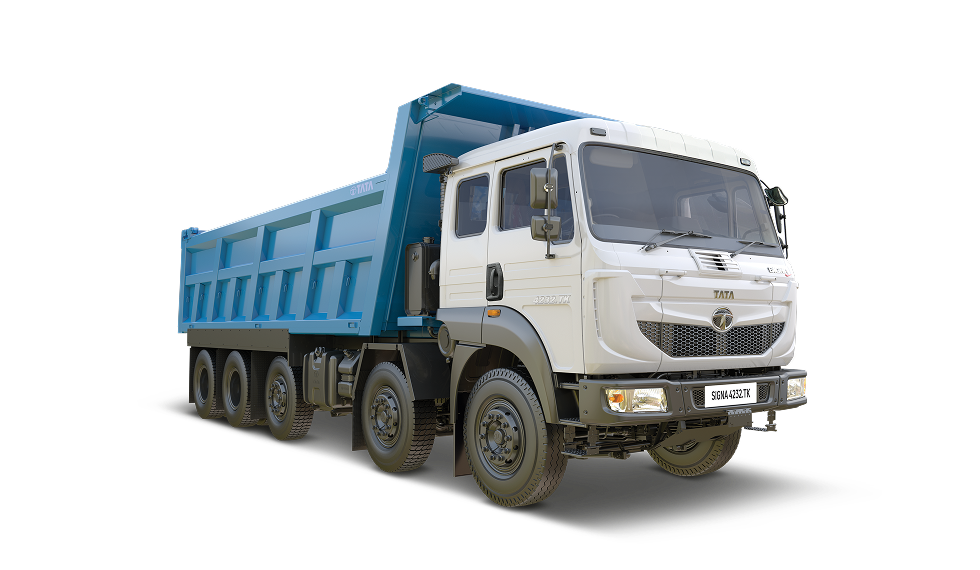

SIGNA 4232.TK 10X2 & 10X4
The SIGNA 4232.TK 10X2 & 10X4 is built for large-scale hauling of sand, coal, crushed stone, and fly ash. Powered by the Cummins ISBe engine and reinforced with rugged aggregates, it delivers strong pulling power, durability, and consistent uptime. Advanced safety systems, telematics, and an extended driveline warranty ensure dependable performance across demanding construction and mining environments.
Engine
Cummins ISBe 6.7
Torque
1100 Nm
Fuel Tank
300L HDPE
Tyres
11R20 & 295/90R20
Warranty
6Years/6K Hours on Driveline
Applications
Sand, Crushed Stone, Coal, Fly ash
| Tyre | 11R20 & 295/90R20 |
| Key Features | GSA, FE Switch, Mode shift advisor, HSA, ATC, Engine Brake |
| Warranty | Drive line - 6Year/6Lakh Km Vehicle - 3Year/3Lakh Km |
| Emission Norms | Only SCR |
| Ventilation | AC |
| Cabin | Signa Cabin |
| DEF Tank | 60L |
| Electronic Anti Fuel Theft | Yes |
| Fuel Tank | 300L HDPE |
| Chassis Frame | Ladder type heavy duty frame |
| Auxiliary Brake | Engine Brake |
| Service Brake | Full Air S-Cam with Automatic Adjuster |
| Max Power | 239 Kw (320HP) @ 2300 Rpm |
| Rear Suspension | Bell Crank with Semi Elliptical leaf spring |
| Front Suspension | Parabolic Leaf Spring |
| Rear Axle | RA 109 SRT |
| Gearbox | Tata G1150 9 Speed |
| Clutch Type | 430 mm Single plate dry friction type |
| Wheel Base | 68 |
| No. of Wheels | 14 |
| GCW | 42000 Kg |
| Engine Capacity / Cylinder | 6702 CC / 6 Cylinder |
| Engine Type | Cummins ISBe 6.7 |
| Max Torque | 1100 Nm @ 1100-1700 Rpm |
