TRACTOR TRAILERS

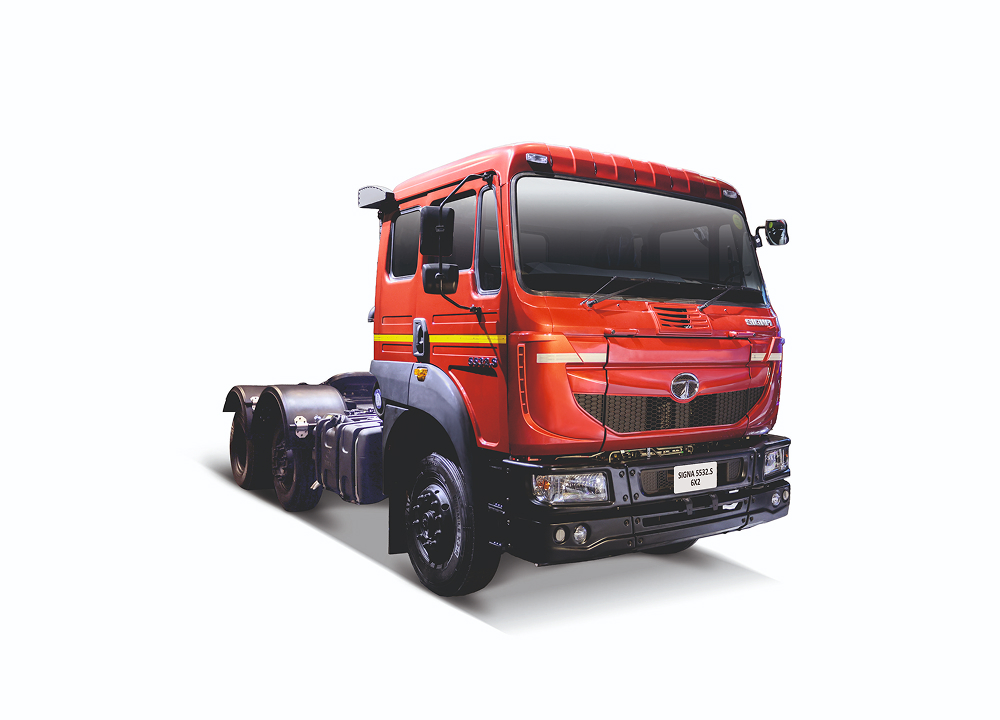

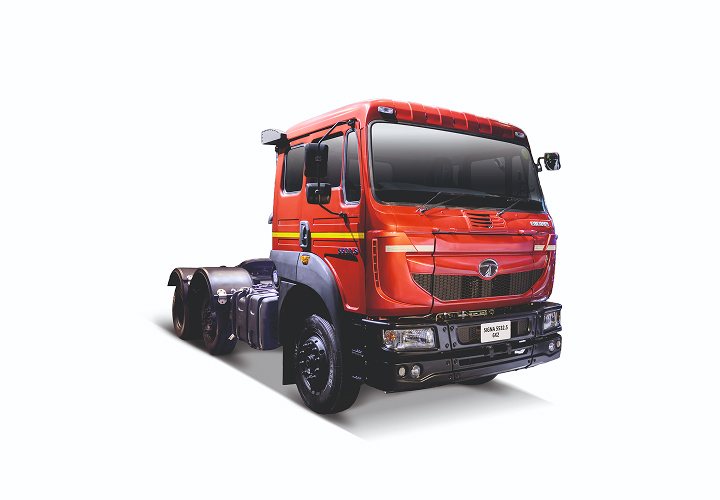

TATA SIGNA/PRIMA 5532.S 6X4
The Tata Signa 5532.S 6x2 tractor creates a new segment in Indian trucking, engineered to deliver superior performance, higher uptime, and unmatched operating efficiency for long-haul applications.
55000 kg
GVW239 Kw (320HP) @ 2300 Rpm
PowerCummins ISBe 6.7
EngineNA
Deck LengthSIMILAR VEHICLES
TATA SIGNA 5532.S (6x2)
Powered by the proven 6.7L Cummins engine and featuring an advanced 6x2 axle architecture with a self-steer lift axle, it ensures enhanced stability, improved tyre life, reduced fuel consumption, and dependable performance even at full GCW
Engine
Cummins ISBe 6.7
Torque
1100 Nm
Fuel Tank
365L HDPE
Tyres
295/90R20
Warranty
6Y/6L on Driveline
Applications
Auto Logistics, Container, Tanker, Cement, Construction Aggregates, Steel, Industrial Goods, Coal
| Front Suspension | Parabolic Leaf Spring |
| Key Features | GSA, Auto FE mode, Cruise control, HSA, EBD, Low viscous oil |
| Trim Levels | EX, LX, VX |
| Warranty | Drive line - 6Year/6Lakh Km Vehicle - 3Year/3Lakh Km |
| Ventilation | AC |
| Cabin | Signa & Prima Cabin |
| DEF Tank | 60L |
| Electronic Anti Fuel Theft | Yes |
| Fuel Tank | 365L HDPE |
| Chassis Frame | Ladder type heavy duty frame with riveted/bolted cross membe |
| Auxiliary Brake | Engine Brake |
| Service Brake | Full Air S-Cam with Automatic Adjuster |
| Tyre | 295/90R20 |
| Rear Suspension | Bell Crank (Optional - Bogie) |
| Max Power | 239 Kw (320HP) @ 2300 Rpm |
| Rear Axle | RA 109 SRT |
| Gearbox | Tata G1150 9 Speed |
| Clutch Type | 430 mm Single plate dry friction type |
| Wheel Base | 38 |
| No. of Wheels | 10 |
| GCW | 55000 Kg |
| Fuel Tank Capacity (Litres) | 365L HDPE |
| Gradeability (%) | 29% |
| Engine Capacity / Cylinder | 6702 CC / 6 Cylinder |
| Engine Type | Cummins ISBe 6.7 |
| Emission Norms | Only SCR |
| Max Torque | 1100 Nm @ 1100-1700 Rpm |
-
-
