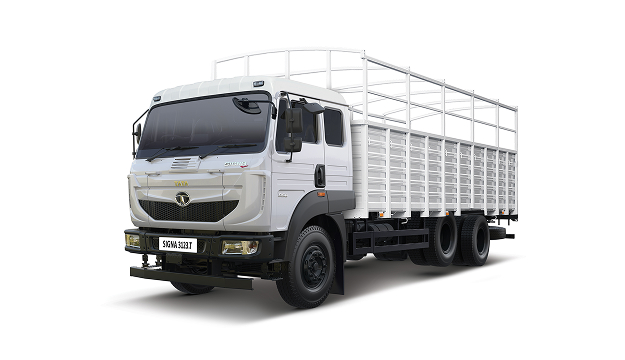

TATA LPT/SIGNA 3123.T
A high-torque, heavy-duty hauler engineered for superior productivity and dependable long-distance operations.
31000 Kg
GVW169 Kw (230HP) @ 2300 Rpm
PowerCummins ISBe 5.6
EngineNA
Deck LengthSIMILAR VEHICLES
TATA LPT/SIGNA 3123.T
The LPT/SIGNA 3123.T delivers exceptional pulling power for tanker, cement, agriculture, and industrial transport duties. Equipped with the Cummins ISBe engine, advanced fuel-efficiency modes, cruise control, and 4G telematics, it ensures high uptime, reduced operating costs, and confident performance, supported by a robust driveline warranty for long-term fleet reliability..
Engine
Cummins ISBe 5.6
Torque
925 Nm @ 1000-1600 Rpm
Fuel Tank
Diesel
Tyres
295/90R20
Warranty
6Y6L on Driveline
Applications
Application - Tanker, Agriculture Goods, Industrial Goods, Cement
| No. of Wheels | 10 Wheels |
| Trim Levels | EX |
| Chassis Frame | Ladder type heavy duty frame |
| Cowl/Cabin | LPT Cowl / Signa Cabin |
| DEF Tank | 60L |
| Electronic Anti Fuel Theft | Yes |
| Warranty | Drive line - 6Year/6Lakh Km Vehicle - 3Year/3Lakh Km |
| Ventilation | AC |
| Telematics | Yes |
| Front Suspension | Parabolic Leaf Spring |
| Rear Suspension | Semi elliptical Leaf Spring |
| Rear Tyre | 295/90R20 |
| Front Tyre | 295/90R20 |
| Max Power | 169 Kw (230HP) @ 2300 Rpm |
| Seating Capacity & Layout | D + 2 |
| Load Body Length | 24Ft |
| Gearbox | Tata G950 6 Speed |
| Clutch Type | 395 mm Single plate dry friction type |
| Fuel Type | Diesel |
| Fuel Tank Capacity (Litres) | 365L HDPE |
| Gradeability (%) | NA |
| Engine Cylinders | 6 Cylinders |
| Engine Type | Cummins ISBe 5.6 |
| Emission Norms | Only SCR |
| Max Torque | 925 Nm @ 1000-1600 Rpm |
