TRACTOR TRAILERS

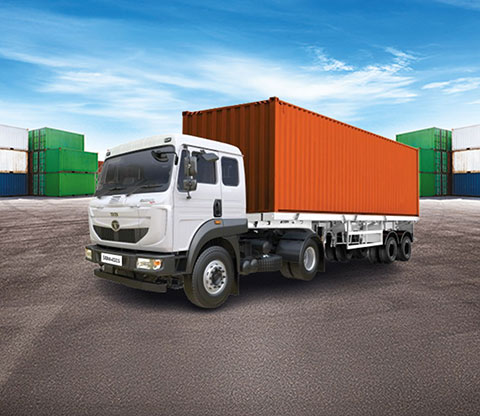

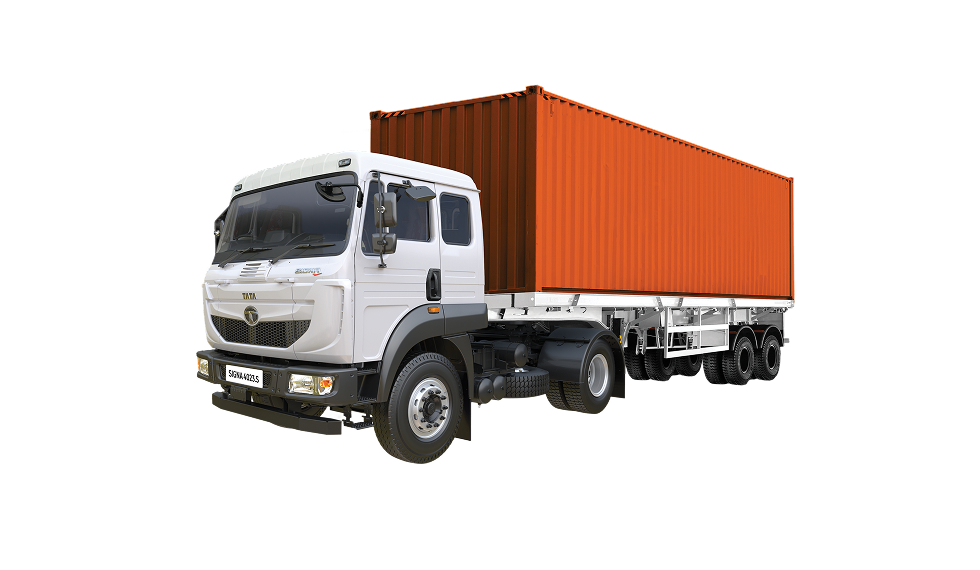

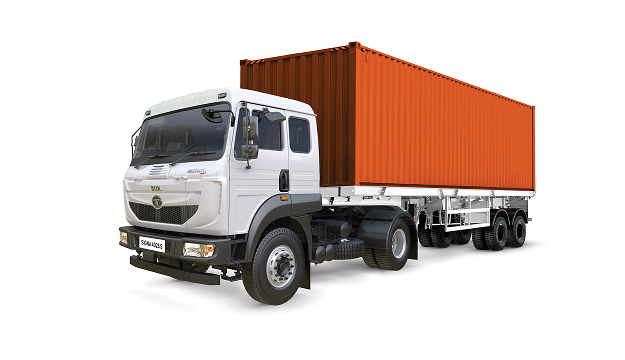

TATA SIGNA 4023.S
A high-torque tractor built for containerized cargo, heavy logistics, and demanding infrastructure operations.
39500 Kg
GVW169 Kw (230HP) @ 2300 Rpm
PowerCummins ISBe 5.6L
EngineSIMILAR VEHICLES
TATA SIGNA 4023.S
The SIGNA 4023.S is engineered for intensive applications such as auto logistics, cement, steel, and construction aggregates transport. Powered by the Cummins ISBe engine and paired with advanced fuel-efficiency technologies, cruise control, and 4G telematics, it delivers strong performance, reduced operating costs, and dependable uptime, supported by an extended driveline warranty for long-term fleet reliability.Â
Â
Engine
Cummins ISBe 5.6
Torque
925 Nm
Fuel Tank
365L HDPE
Tyres
295/90R20
Warranty
6Y/6L on Driveline
Applications
Auto Logistics, Container, Tanker, Cement, Construction Aggregates, Steel, Industrial Goods
| GCW | 39500 Kg |
| No. of Wheels | 6 |
| Wheel Base | 33 |
| Engine Type | Cummins ISBe 5.6 |
| Engine Capacity / Cylinder | 5635 CC / 6 Cylinder |
| Max Power | 169 Kw (230HP) @ 2300 Rpm |
| Max Torque | 925 Nm @ 1000-1600 Rpm |
| Clutch Type | 395 mm Single plate dry friction type |
| Gearbox | Tata G950 6 Speed |
| Rear Axle | RA 110 |
| Front Suspension | Parabolic Leaf Spring |
| Rear Suspension | Semi elliptical Leaf Spring |
| Tyre | 295/90R20 |
| Service Brake | Full Air S-Cam with Automatic Adjuster |
| Auxiliary Brake | Engine Brake |
| Chassis Frame | Ladder type heavy duty frame with riveted/bolted cross membe |
| Fuel Tank | 365L HDPE |
| Electronic Anti Fuel Theft | Yes |
| DEF Tank | 60L |
| Cabin | Signa Cabin |
| Ventilation | AC |
| Emission Norms | Only SCR |
| Warranty | Drive line - 6Year/6Lakh Km Vehicle - 3Year/3Lakh Km |
| Trim Levels | EX, LX |
| Key Features | GSA, Auto FE mode, Cruise control, HSA, EBD, Low viscous oil |
