TATA LPT/SIGNA 3523.T
A powerful, multi-application truck engineered for heavy loads, efficiency, and long-haul productivity.
35000 Kg
GVW169 Kw (230HP) @ 2300 Rpm
PowerCummins ISBe 5.6
EngineSIMILAR VEHICLES

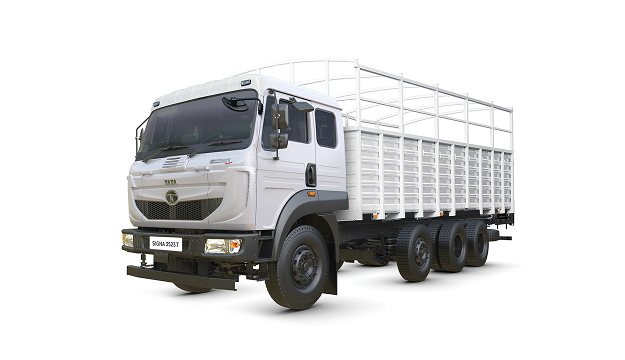

TATA LPT/SIGNA 3523.T
The LPT/SIGNA 3523.T is built to handle demanding logistics across cold chain, auto transport, FMCG, and tanker operations. Powered by the Cummins ISBe engine and supported by advanced fuel-efficiency modes, cruise control, and 4G telematics, it delivers consistent performance, reduced operating costs, and dependable uptime, by an extended driveline warranty for long-term fleet confidence.
Engine
Cummins ISBe 5.6
Torque
925 Nm @ 1000-1600 Rpm
Fuel Tank
Diesel
Tyres
295/90R20
Warranty
Drive line - 6Year/6Lakh Km Vehicle - 3Year/3Lakh Km
Applications
Industrial Goods, E-Commerce, LPG Bullet, Auto Logistics, Cold Chain, FMCG, Textiles, Parcel & Courier, Tanker, Agriculture Goods
| GVW | 35000 Kg |
| No. of Wheels | 12 |
| Wheel Base | 56 | 60 | 68 |
| Load Span (In Ft) | 24Ft | 28Ft | 32Ft |
| Engine | Cummins ISBe 5.6 |
| Engine Capacity / Cylinder | 5635 CC / 6 Cylinder |
| Max. Power | 169 Kw (230HP) @ 2300 Rpm |
| Max. Torque | 925 Nm @ 1000-1600 Rpm |
| Clutch Type | 395 mm Single plate dry friction type |
| Gearbox | Tata G950 6 Speed |
| Rear Axle | Tata RA 110 |
| Front Suspension | Parabolic Leaf Spring |
| Rear Suspension | Bell Crank with Semi elliptical Leaf Spring |
| Tyre | 295/90R20 |
| Service Brake | Full Air S-Cam with Automatic Adjuster |
| Auxiliary Brake | Engine Brake |
| Chassis Frame | Ladder type heavy duty frame with riveted/bolted cross |
| Fuel Tank | 365L HDPE |
| Electronic Anti Fuel Theft | Yes |
| DEF Tank | 60L |
| Cowl/Cabin | LPT Cowl / Signa Cabin |
| Ventilation | AC |
| Emission Norms | Only SCR |
| Warranty | Drive line - 6Year/6Lakh Km Vehicle - 3Year/3Lakh Km |
| Trim Levels | EX |
| Key Features | GSA, Auto FE mode, Cruise control, Low viscous oil, RPAS, 4G |
| Seating Capacity | D + 2 |
