ILMCV Trucks

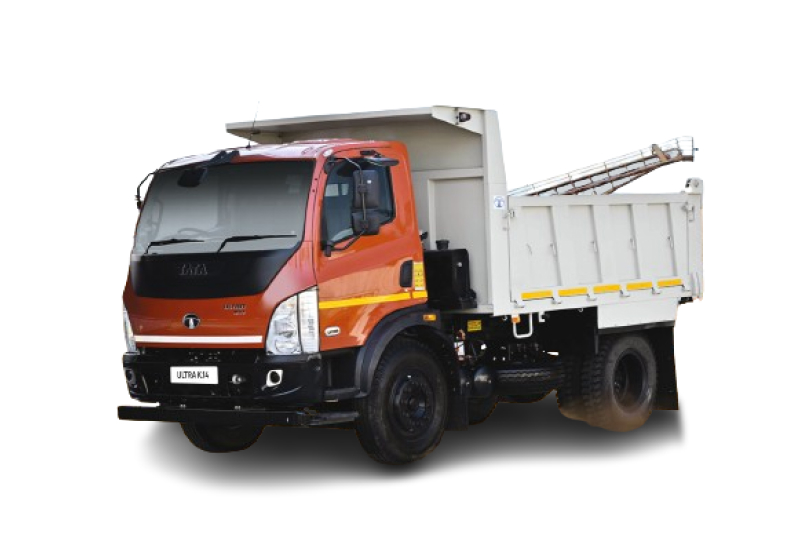

TATA ULTRA K.14
28000 Kg
GVW177.7 kW (160 Ps) @ 2600 r/min (Heavy Mode) | 92 kW (125 Ps) @ 2600 r/min (Light Mode)
Power3.3L NG BS6 Engine
EngineSIMILAR VEHICLES
Engine
3.3L NG BS6 Engine
Torque
475 Nm@1600-2000 r/min (Heavy Mode) | 400 Nm@1100 - 2000 r/min (Light Mode)
Fuel Tank
120 L
Tyres
9 x 20 - 16 PR
Warranty
3 Years / 3 Lakh Kms
Applications
Sand, Mining, Stone
| Max Power | 160 PS @ 2600 RPM |
| Max Torque | 475 Nm @ 1000-2000 rpm |
| Emission Norms | BS6 PH-2 |
| Engine Type | 3.3L NG BS6 Engine |
| Engine Cylinders | 4 Cylinders |
| Gradeability (%) | 36.5 |
| Fuel Tank Capacity (Litres) | 120 L |
| Fuel Type | Diesel |
| Clutch Type | Single Plate Multistage Dry Friction 330 mm |
| Gearbox | GBS 550 |
| GVW / GCW (Kgs) | 14250 Kg |
| Load Body Type | CBC |
| No. of Wheels | 6 Wheels |
| Front Tyre | 9.00 - 20, 16 PR |
| Rear Tyre | 9.00 - 20, 16 PR |
| Rear Suspension | Semi-Elliptical Leaf Springs with parabolic auxiliary |
| Telematics | Yes |
| Brake Type | Air Brake |
| Front Suspension | Parabolic Leaf Spring |
| Telematics | Yes |
| Brake Type | Air Brake |
| Warranty | 3 years or 300000 km, Whichever is earlier* |
