ILMCV Trucks

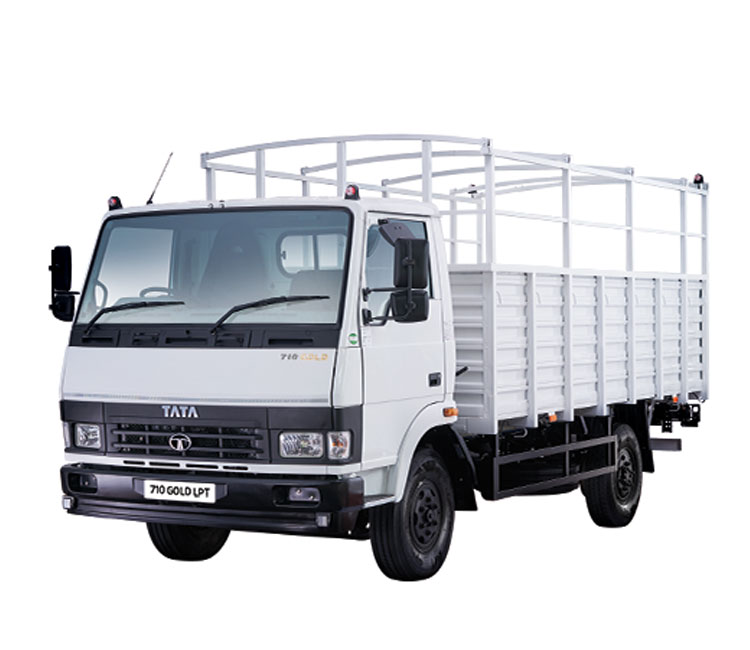

TATA LPT GOLD 710
7490Kg
GVW73.6 kW (100 Ps) @ 2800 r/min
Power4SP BS6 Phase2 TCIC engine
Engine7490 Kg
Deck LengthSIMILAR VEHICLES
TATA 710 LPT GOLD
Engine
4SP BS6 Phase 2 TCIC Engine
Torque
300 Nm @1000 -2200 r/min
Fuel Tank
90L Metal Tank
Tyres
8.25R25 - 16 PR (Low CRR)
Warranty
3 Years/300000 km
Applications
Cements Building Construction, Parcel & Courier E-commerce, Pharma, Fruits & Vegetable, FMCG, LPG Cylinder, Food Grains, Industrial Goods, Containers & Reefers, White goods
| GVW / GCW (Kg) | 7490Kg |
| Warranty | 3 years or 300000 km |
| Brake Type | Air Brake |
| Telematics | Yes |
| Front Suspension | Parabolic Suspension with rubber bush and Hydraullic double |
| Rear Suspension | Semi-Elliptical Leaf Spring with Auxiliary Springs |
| Rear Tyre | 8.25R16-16PR |
| Front Tyre | 8.25R16-16PR |
| No. of Wheels | 6 |
| Overall Length (mm) | 3160 mm & 5218 mm |
| Overall Height (mm) | 1815 mm |
| Overall Width (mm) | 2105 mm |
| Wheelbase (mm) | 2950 mm & 3920 mm |
| Max Power | 73.6 kW (100 Ps) @ 2800 r/min |
| Load Body Dimension | 2105mm x 1815 mm |
| Load Body Type | CAB & HSD |
| Load Body Length | 3160 mm & 5218 mm |
| Gearbox | G440 |
| Clutch Type | Single plate dry friction type - 280 mm dia |
| Fuel Type | CNG |
| Fuel Tank Capacity (Litres) | 90 L Metal Tank |
| Gradeability (%) | 35 |
| Engine Cylinders | 4 Cylinders |
| Engine Type | 4SP BS6 Phase2 TCIC engine |
| Emission Norms | BS6 PH-2 |
| Max Torque | 300 Nm @1200 -2200 r/min |
-
-
-
-
