ILMCV Trucks

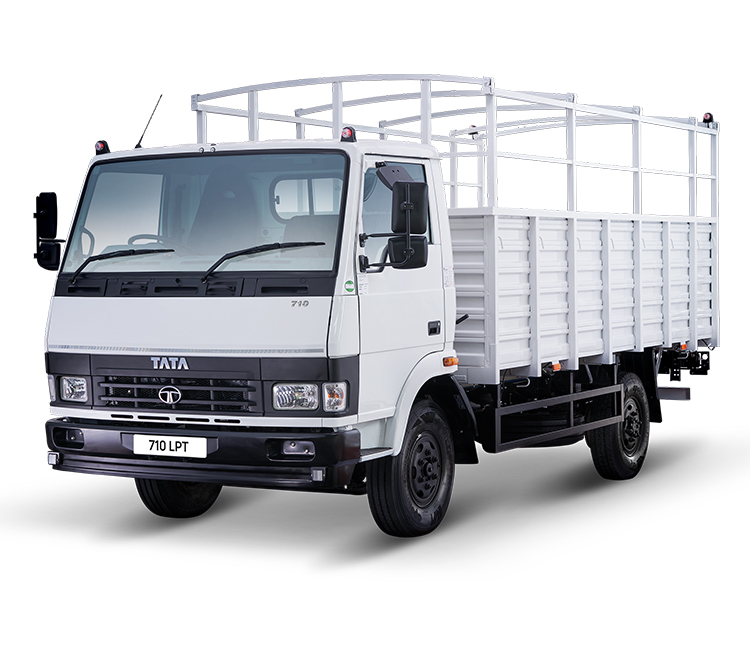

TATA LPT 710
7490kg
GVW74.5kW (100 PS) @ 2 800 r/min
Power4 SP BS6 Phase 2 TCICengine
Engine7490kg
Deck LengthSIMILAR VEHICLES
TATA LPT 710
Engine
4 SP BS6 Phase 2 TCICengine
Torque
300 Nm @ 1000 - 2200 r/min
Fuel Tank
90 L HD Polymer Fuel Tank with Fuel Management
Tyres
Radial 8.25 R 16Low CRR Tyre (FR-2, RR-2, Spare-1)
Warranty
3 Year | 300000 km
Applications
Fruits & Vegetables, Market Load, FMCG, White Goods, Containers & Reefers, Parcel Courier & E Commerce, Industrial Goods, Food Grains, LPG Cylinders, Beverages & Mineral Water
| Load Body Type | CAB & HSD |
| Warranty | 3 years or 300000 km |
| Brake Type | Air Brake |
| Telematics | Yes |
| Suspension - Rear Type | Semi - Elliptical Leaf Spring with Auxillary Springs |
| Suspension - Front Type | Parabolic Suspension with rubber bush and Hydraullic double |
| No. of Wheels | 6 |
| Overall Length (mm) | 3692 mm |
| Overall Height (mm) | 1825 mm |
| Overall Width (mm) | 2135 mm |
| Wheelbase (mm) | 3310 mm |
| GVW / GCW (Kgs) | 7490 kg |
| Max Power | 74.5kW (100 PS) @ 2 800 r/min |
| Load Body Length | 3692 mm |
| Gearbox | G400 (5F, 1R)Cable Shift Mechanism |
| Clutch Type | Single Plate Dry Friction type - 280 mm dia |
| Fuel Type | CNG |
| Fuel Tank Capacity (Litres) | 90 L HD Polymer Fuel Tank with Fuel Management |
| Gradeability (%) | 34.7% |
| Engine Cylinders | 4 Cylinders |
| Engine Type | 4 Cylinder In Line Water Cooled Direct Engine water cooled |
| Engine Displacement | 2 956 cc |
| Max Torque | 300 Nm @ 1000 - 2200 r/min |
-
