Alternate Fuel

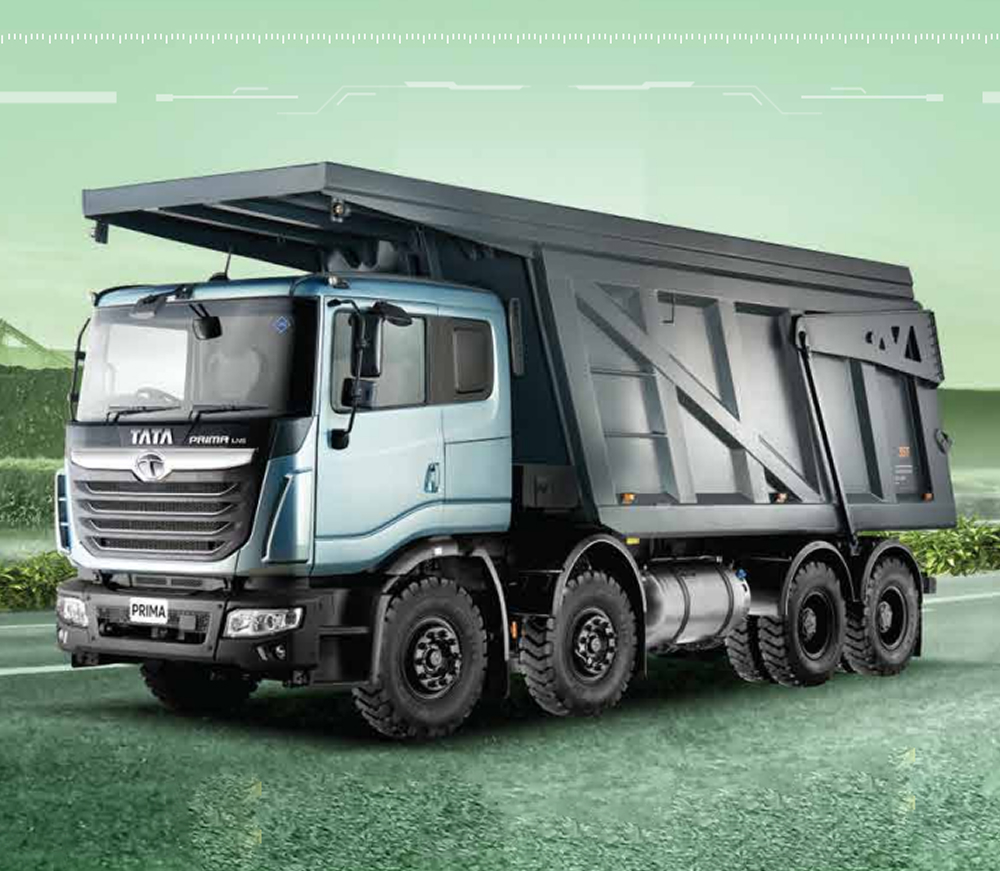

TATA Prima 3530.K LNG
A sustainable LNG-powered mining tipper engineered for heavy loads and rugged site operations.
35000 Kg
GVW205 Kw (275HP) @ 2250 Rpm
PowerCummins 6.7L LNG
EngineNA
Deck Length
SIMILAR VEHICLES
TATA Prima 3530.K LNG
The PRIMA 3530.K LNG is built for intensive mining and construction duties, handling coal, boulders, and aggregates with ease. Powered by the Cummins LNG engine and paired with heavy-duty HRT axles, it delivers high pulling power with lower emissions and operating costs. Advanced telematics and fuel-efficiency technologies support uptime and productivity, backed by an extended driveline warranty.
Engine
Cummins ISBe 6.7
Torque
1100 Nm
Fuel Tank
300L & 600L
Tyre
295/95D20 & 11X20
Warranty
6Year/6K Hour on Driveline
Applications
Minning, Coal, Bolder, Construction Aggregates
| Rear Suspension | Bogie |
| Key Features | GSA, FE Switch, Mode Shift Advisor, 4G Temelatics |
| Trim Levels | LX |
| Warranty | Drive line - 6Year/6K Hours Vehicle - 3Year/3K Hours |
| Ventilation | AC |
| Cabin | Prima Cabin |
| Fuel Tank | Option 1 - 300L | Option 2 - 600L (300L + 300L) |
| Chassis Frame | Ladder type heavy duty frame with riveted/bolted cross membe |
| Auxiliary Brake | Engine Brake |
| Service Brake | Full Air S-Cam with Automatic Adjuster |
| Tyre | 11R20 & 11X20 |
| Max. Power | 205 Kw (275HP) @ 2250 Rpm |
| Front Suspension | Parabolic Leaf Spring |
| Rear Axle | RA 210 HRT |
| Gearbox | Tata G1150 9 Speed |
| Clutch Type | 430 mm Single plate dry friction type |
| Load Span | Box - 23 | 26 Scoop - 19 |
| No. of Wheels | 12 |
| GVW | 35000 Kg |
| Engine Capacity / Cylinder | 6700 CC / 6 Cylinder |
| Engine | Cummins 6.7L LNG |
| Max. Torque | 1100 Nm @ 1200-1700 Rpm |
-
